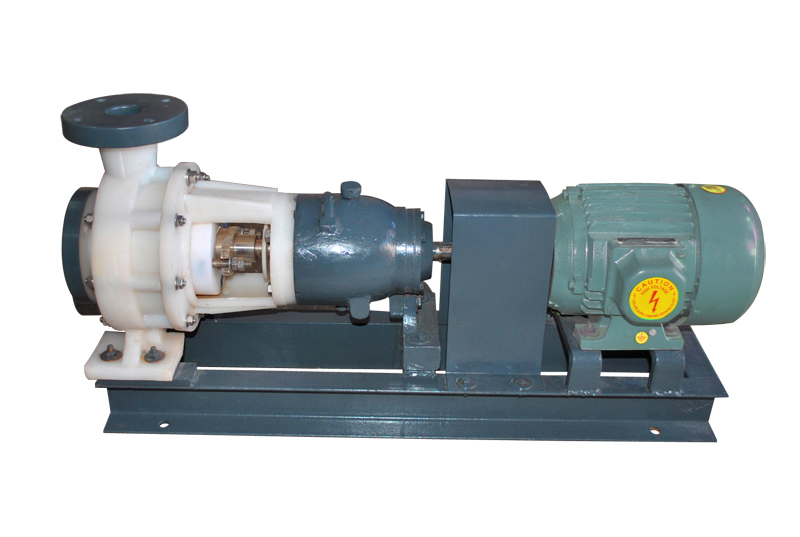

Polypropylene Horizontal Centrifugal Pump

The "VIJAY " pump is similar hydraulic design to any conventional centrifugal pump. Standard dimension process pumps with mechanical Seal/ Gland packing arrangement covering all of the chemical industries. These pumps give you unusual protection against corrosive & abrasive.

The Salient Features Of P.P. Horizontal Chemical Process Pump
  • The volute chamber is one piece, heavy, joint less design manufactured from Poly-Propylene a chemically inert thermoplastic by the use of an exclusive moulded process.
  • All the wet-end parts are in solid moulded construction to with stand corrosion and erosion.
  • The impeller are semi-open type Hydraulically balanced by back vanes, used in our all pumps to suit both clear & polluted fluids.
  • Distance piece of pumps are made from Poly-Propylene so no corrosion problem can pump leakage.
  • The bearing bracket made from heavy-duty graded casting coated with anti corrosive paint.
  • Reliable fixing of impeller on the shaft by direct thread.
  • Centrifugal quiet, vibration free.
Centrifugal Pump, Chemical Process Pump, Horizontal Chemical Process Pump
  • The complete pump-rotating element can be withdrawn towards the motor end without disturbing the suction or delivery pipeline, due to back pull out design. The motor remain fixed to base plate. The pump rotating element can easily be dismantled into its component. After reassemble no time consuming Re-Alignment is necessary.
  • You will find maximum dimensional inter-changeability in the design of "VIJAY" Pump.
  • "VIJAY" Pumps requires minimum spare parts and saves you considerable maintenance costs in the long run.


Application
  • PHOSPHORIC ACID PLANTS : H3PO4, H2SO4, HF and their mixtures with or without solid (gypsum) up to 40% conc.
  • GAS WASHING PLANTS : Scrubbed liquids containing CL2, BR2, F2, I2, SO2, SO3, CO2, NH3 Gases etc. with solids replace hastalloy.
  • RAYON PLANTS : Spin bath solution (H2SO4, ZNSO4, NaSO4, etc.)
  • CAUSTIC SODA PLANTS : Chlorinated brine, conc. HCL, Dilute H2SO4 etc.
  • WATER TREATMENT
  • EFFLUENT TREATMENT
  • ELECTRO PLATING
  • PICKLING IN STEEL ROLLING MILLS
  • FILTER PRESS FOR DYES
  • DESCALING
  • PAPER AND FERTILIZER PLANTS
Range Of Performance

The pump may be run at 1440 & 2880 RPM respectively and a range of impeller diameter for each pump size gives a wide spread of performance.

In general the range covers flow up to 100m3/ hr and discharge head up to 50 meters.



After Sales Services

Our service technicians can meet you any where in INDIA at a short notice spares are available ready stock our constant astaire is to ensure that a "VIJAY" Pump never causes you downtime once you have put it to operation.




 Click here for more detail:
Cross Section Drawing Performance Curve
